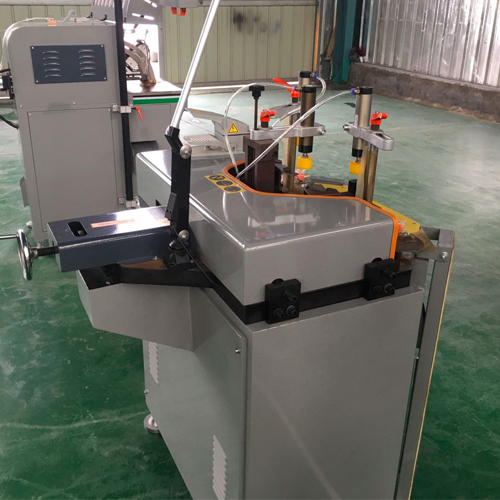

Aluminum Single Head Corner Crimping Machine(Lifting Type)

1.This machine is used for corner crimping process for aluminum window door

2.This is lifting type, easy to take out the aluminum profile
  • Model: LMJ-120
  • Description Brand


    1.Hydraulic system driving, ensure a stable working

    2.Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently

    3.Convenient operation and less error in processing

    4.Distance of tool knife adjustable,as the screw thread connection,easy working for tools.

    5.This is lifting type, easy to take out the aluminum profile after corner crimping


    Model LMJ-120
    Voltage 380V/50HZ
    Power 1.5Kw
    Oil Tank Capacity 20L
    Rated Oil Pressure 15Mpa
    Seam Error <0.15mm
    Profile Width  120mm
    Air Pressure 0.5-0.8Mpa
    Dimension 1300x1200x1300

    Detailed Pictures:


    SAINT-FECO CNC Machinery Co.LTD is established in 2006. We are professional manufacturer of window door and glass machines with 17 years experience.
    We have our own industrial park covered an area of with 30000 square meters in 2015, and our registered capital is 10,000000RMB. Also we have our own R&D team, production department, QC department, purchase department, after-sale service department and so on. We have 50 persons with rich machine assembling experience.Now we have more than 20 branches in China, also our machines have been sold to Southeast Asia, America, India, and so on.
