Aluminum CNC Corner Connector Cutting Saw

1.This machine adopts CNC system, it's used for cutting corner key for aluminum windows

2.It can feed the profiles automatically, and easy to cooperate
  • Model: LJJA-CNC-450
  • Description



    1. It has features of easy operation,reliable performance,advanced technique and convenient maintenance etc.

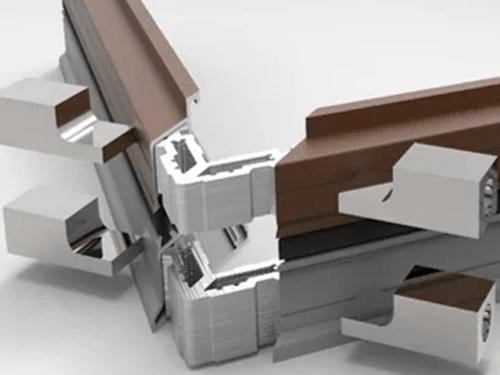

    2. Used for corner connector of aluminum profile cutting
    3. Only one time clamping, can achieve 6 meters corner section bar continuous cutting
    4. The use of imported control system, control system adopts the man-machine interface, high automation degree
    5. The tool adopts hard alloy saw blade, motor power, high cutting speed, high productivity, high precision machining




    Model LJJA-CNC-450
    Voltage 380V/50HZ
    Power 2.2KW
    Air Pressure 0.5-0.8Mpa
    Rotary Speed 2850rpm/min
    Saw Blade Diameter φ450xφ
    Cutting Width 110mm
    Cutting Height 180mm
    Feeding Length 0-400mm
    Dimension 5000x1400x1500mm

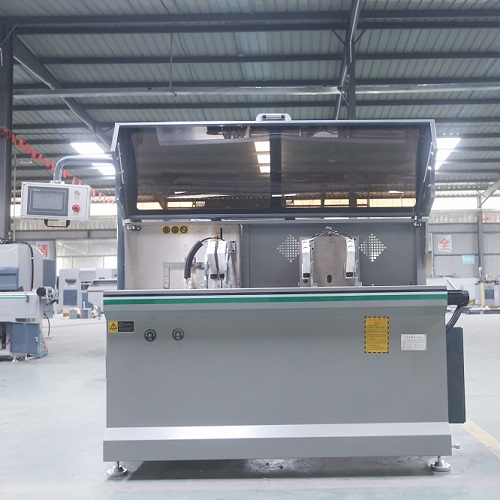

    Detailed Pictures
