Aluminum CNC Double Mitre Saw

1.This machine is used for cutting aluminum profiles, cutting degree is 45,67.5 and 90.

2.It adopts Schneider system, also all electrical components
  • Model: LJ2S-CNC-500x4200
  • Description



    1. Adopted imported CNC system, It can achieve various profile automatic cutting off in right size.

    2. Imported Ball Screw control head's motion, and the two saw heads are adjustable and cut the profiles in 90,45,22.5 degree freely

    3. Several profile processing dimensions can be input in one time and make continuous cutting

    4. Imported carbide saw blade give accurate processing and high-endurance.

    5. The feeding system adopts the imported linear guide pair with high accuracy and stability.



    Model LJ2S-CNC-500x4200
    Voltage 380V/50HZ
    Power 2.2KWx2+1.5KW
    Saw Blade Diameter φ500x4.4xφ30
    Air Pressure 0.5-0.8Mpa
    Cutting Angle   90°  45°   67.5°
    Cutting Length Max.4200, Min.400mm
    Cutting Width 135mm
    Cutting Height 300mm
    Dimension 6000x1750x1800mm

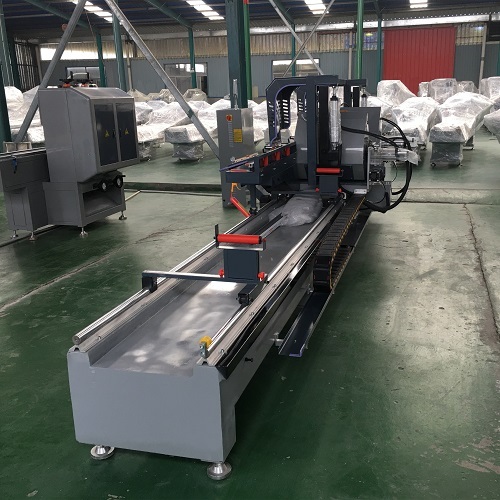

    Detailed Pictures:
