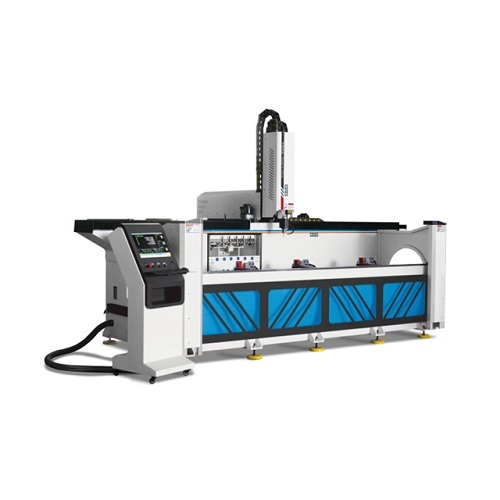

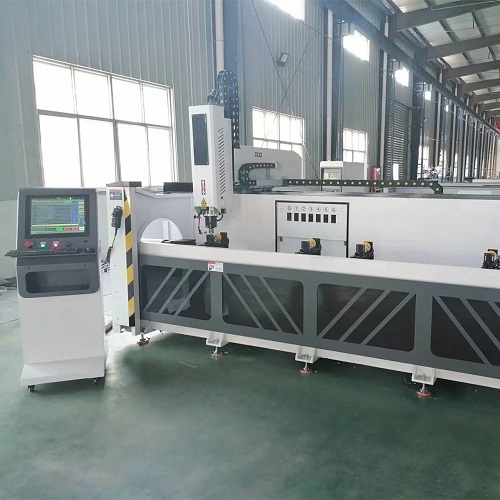

Aluminum CNC Drilling&Milling Machine

1.This machine is used for drilling and milling, drilling, tapping for different holes for industrial aluminum profiles
2.One time clamping can process +90 º0º and -90ºthree surfaces, efficiency is high.
  • Model: LZX-CNC-4000
  • Description
    Features:

    1. This machine is used for drilling and milling, drilling, tapping for different holes for industrial aluminum profiles
    2.One time clamping can process +90 º0º and -90ºthree surfaces, efficiency is high.
    3.Adopts Industrial CNC control system which realize the automatically processing, high precision.
    4.Adopts high strength welding technology, to guarantee machine steady processing.
    5.Adopts imported guide rail, ball screw, servo motor for high precision processing.
    6.All low voltage electrical parts using Schneider brands.
    7.Adopts 6 auto tool changer, for different holes process.
    8.Equipped with 12KW drilling tapping spindle, which is powerful and high efficiency.
    9.Cooling system adapt micro spry system, environmental friendly. Lubrication system is automatically.

    Parameters:

    Model LZX-CNC-4000
    Work stroke
    X Axis Stroke 4000mm
    Y Axis Stroke 350mm
    Z Axis Stroke 300mm
    Precision
    X axis position precision ±0.05mm
    Y/Z axis position precision ±0.05mm
    Power
    Machine Power 16.5KW
    Spindle Power 12KW
    Working Pressure 0.5-0.8Mpa
    Work Speed
    Feeding Speed 0-50m/min
    Feeding Speed 0-40m/min
    Feeding Speed 0-30m/min
    Spindle Speed 0-24000rpm/min
    Tools Specification
    Spindle Tapper IS030
    ATC 6 Tool Magazine
    Machine Specification
    Machine Voltage 380V 50HZ 3PH
    Dimension 5500x1700x2500mm


    Spare Parts List:


    No Name Brand Origin
    1 Controller SYNTEC TAIWAN
    2 Servo Motor HANYU TAIWAN
    3 Spindle GMT CHINA
    4 Driver HANYU TAIWAN
    5 Ball Screw HIWIN TAIWAN
    6 Guide Rail HIWIN TAIWAN
    7 Sensor AUTONICS KOREA
    9 Gear    HIWIN     TAIWAN
    10

    Electrical Parts Schneider FRANCE
