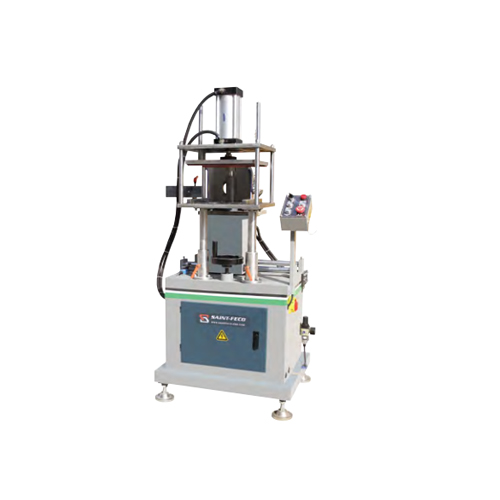

Aluminum Multi-Profiles End Milling Machine

1. Used for aluminum window mullion end milling.
2. Clamp one time can process multi-piece profiles, which increases the processing efficiency.
Description Review
Description

Features

1.Used for processing aluminum profile end face and slot etc

2.Super precision main shaft insures accurate and steady processing

3.Automatic feed, small labor intensity

4.Convenient tool setting is due to adjustable worktable

5.At the same time milling multi-piece profiles


 Parameters



Power supply 220V/50Hz
Motor Speed  2850rpm/min
Air Pressure 0.5-0.8Mpa
Saw Blade Speciafication (Φ200~Φ110)xΦ32
Open tenon (H x W)      70 x 45 mm
Location turning angle      35°~90°
Feeding journey of worktable    0~320 mm
Dimension  850 x 740 x 1280 mm
Weight      230KGS

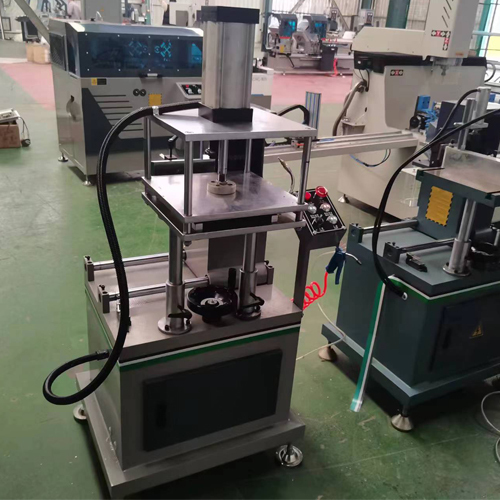

Detailed Pictures:
