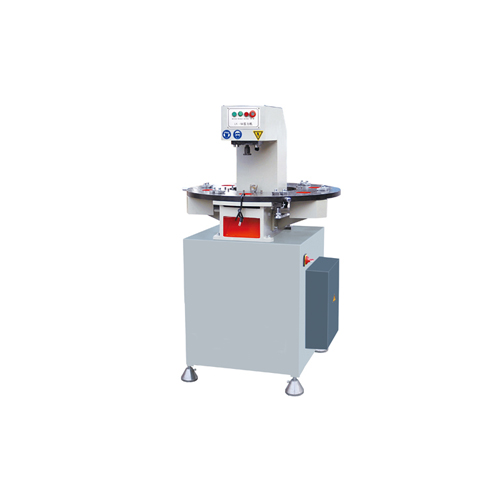

Aluminum Variable Punching Machine

1.This machine is used for punching all kinds of holes for aluminum windows

2.This machine can out multi moulds one time
  • Model: LY6-50
  • Description



    1.Used for punching processing in the manufacture of aluminium window and door.

    2.Every combination punching die equipped can achieve various punching process, by-changing processing position, various types profiles can be processed.

    3.Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increased the production efficiency.




    Model LY6-50
    Power supply 380V    50Hz
    Motor Power 2.2Kw
    Rotary Speed 2850rpm/min
    Rated oil pump pressure 16Mpa
    Rated pressure 50KN
    Capacity of Oil Tank 20L
    Punching travel times  30 Times/min
    Dimension 900mm×900mm×1400mm

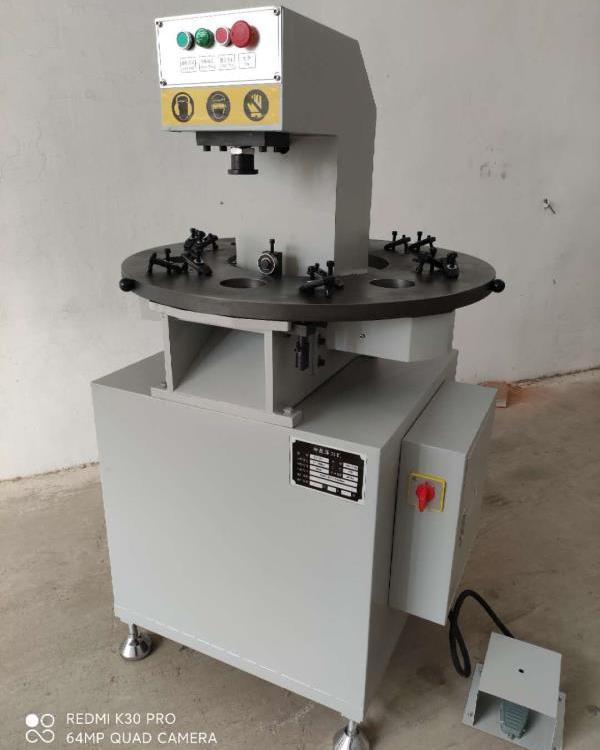

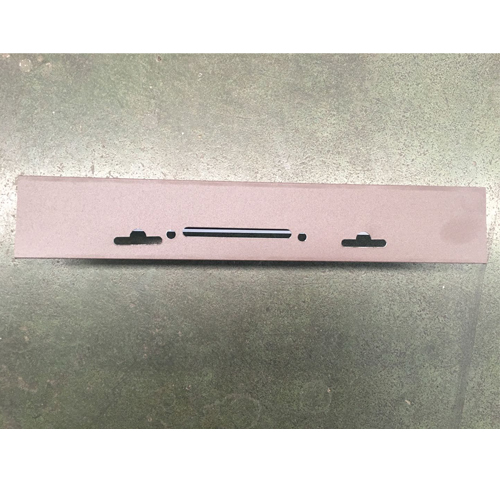

    Detailed Pictures
