Insulating Glass Machine with Gas Filling

1.This machine is used for making double glass,triple glass , big and small glass and so on

2.This machine adopts online automatic gas filling function
  • Model: SFCH-2500/2000
  • Description

    Features



    1.PLC Control ,touch screen human-machine interface


    2.It can make double glass, triple glass, big and small glass ect.


    3.Automatic recognition of coated glass and LOW-E glass film.


    4.Perfect washing performance for on/off line LOW-E glass.


    5.Air kinves automatic adjust according to thickness of glass.


    6.Automatic checking system for glass dimension and thickness.

    7.Servo and torque driving system for accurate pressing.

    8.Hi-tech press machine with 3 or 4 axis linkage servo system, accurate and efficient assembly gas filling press function.

    9.Automatic and accurate assembling for triple IG processing and selective function for gas filling.





    Parameters



    Model SFCH-2500 SFCH-2000
    Voltage 380V/50HZ 380V/50HZ
    Air Pressure 0.5-0.8Mpa 0.5-0.8Mpa
    Min.Glass Size 300x450mm 300x450mm
    Max.Glass Size 2500x3000mm 2000x2500mm
    Glass Thickness 3-18mm 3-18mm
    Transfer Speed 8-45m/min 8-45m/min
    Filling Time 3-5 s 3-5 s
    LOW-E Brush 6 pcs 6 pcs
    Dimension 24600x2000x3700mm 20800x2000x3200mm

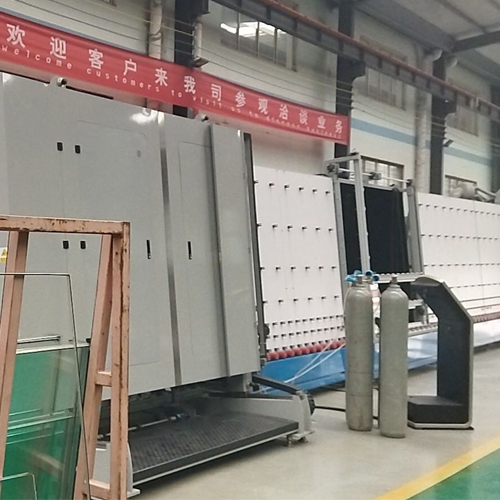

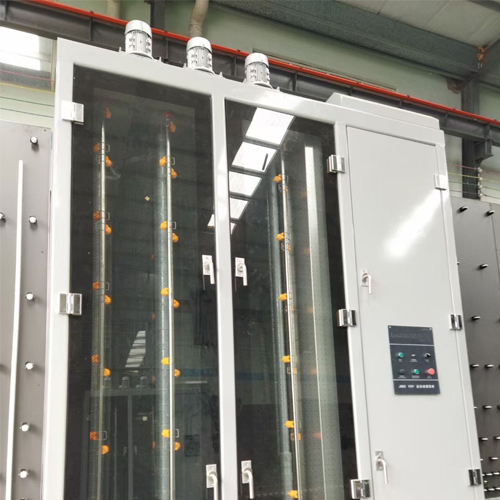

    Detailed Pictures
