PVC Window Double Axis Water Slot Routing Machine

1. Used for milling all kinds of water slots and air pressure balance grooves.

2. Clamping one time to finish water slot processing.
  • Model: LXC01
  • Description



    1.Used for milling all kinds of water slots and air pressure balance grooves.

    2.The milling head is provided with two, to meet the different requirements of the processing profile.

    3.Clamping one time to finish water slot processing.

    4.The length of milling water slot within 60mm is adjustable and its usage range is wide.


    Model LXC01
    Voltage   220V 50Hz
    Total power 0.76KW
    Working pressure   0.4-0.8Mpa
    Rotary Speed 2850rpm/min
    Max. milling depth 30mm
    Diameter of milling cutter 4mm,5mm
    Slot Length 30-60mm
    Dimension   2100mm x 860mm x 1500mm
    Weight 190Kg

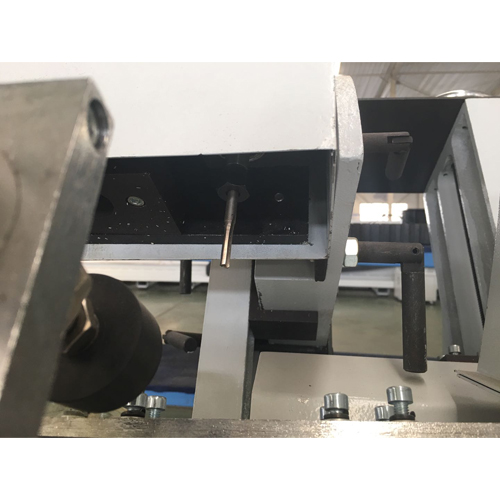

    Detailed Pictures:
