Vertical Glass Washing Machine

1.This machine is used for washing glass

2.Max. glass size is 2500x3000mm
  • Model: SF-2500
  • Description

    1. Cleaning part adopts stainless steel, to guarantee long lifetime.

    2.It has excellent washing and drying effect.

    3.Special designed washing transmission structure, can wash glass from 3mm to 18mm

    4.Transmission system adots smart frequency control , to realize the washing machine high efficiency

    5.The drying part adopts special structure, to guarantee drying effect and save energy

    Model SF-2500
    Voltage 380V/50HZ
    Power 23KW
    Max.Glass Size 2500x3000mm
    Min.Glass Size 280x450mm
    Glass Thickness 3-18mm
    Transfer Speed 0-12m/min
    Weight 4000KGS
    Dimension 8500x2100x3800mm

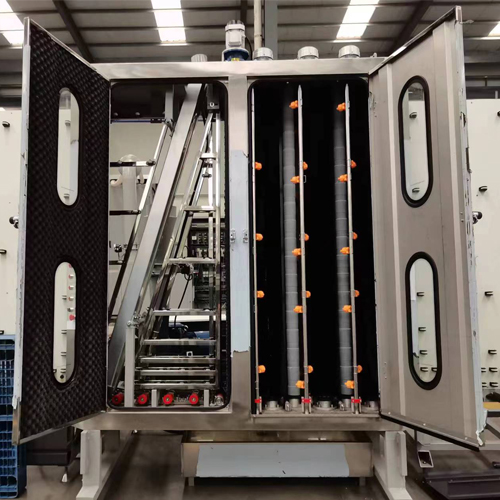

    Detailed Pictures:
